Rigid Doll Gift Box Case Study: Ribbon Lid, Printed Wrap and Size Checks
This archive case documents a custom rigid box developed for a collectible doll and keepsake product. The package uses a deep two-piece lid and base, a glossy white top, a blue polka-dot lower section and a color-matched ribbon bow. The result feels closer to a gift presentation box than a standard folding carton, while the large printable surfaces carry character artwork, product copy and retail information.

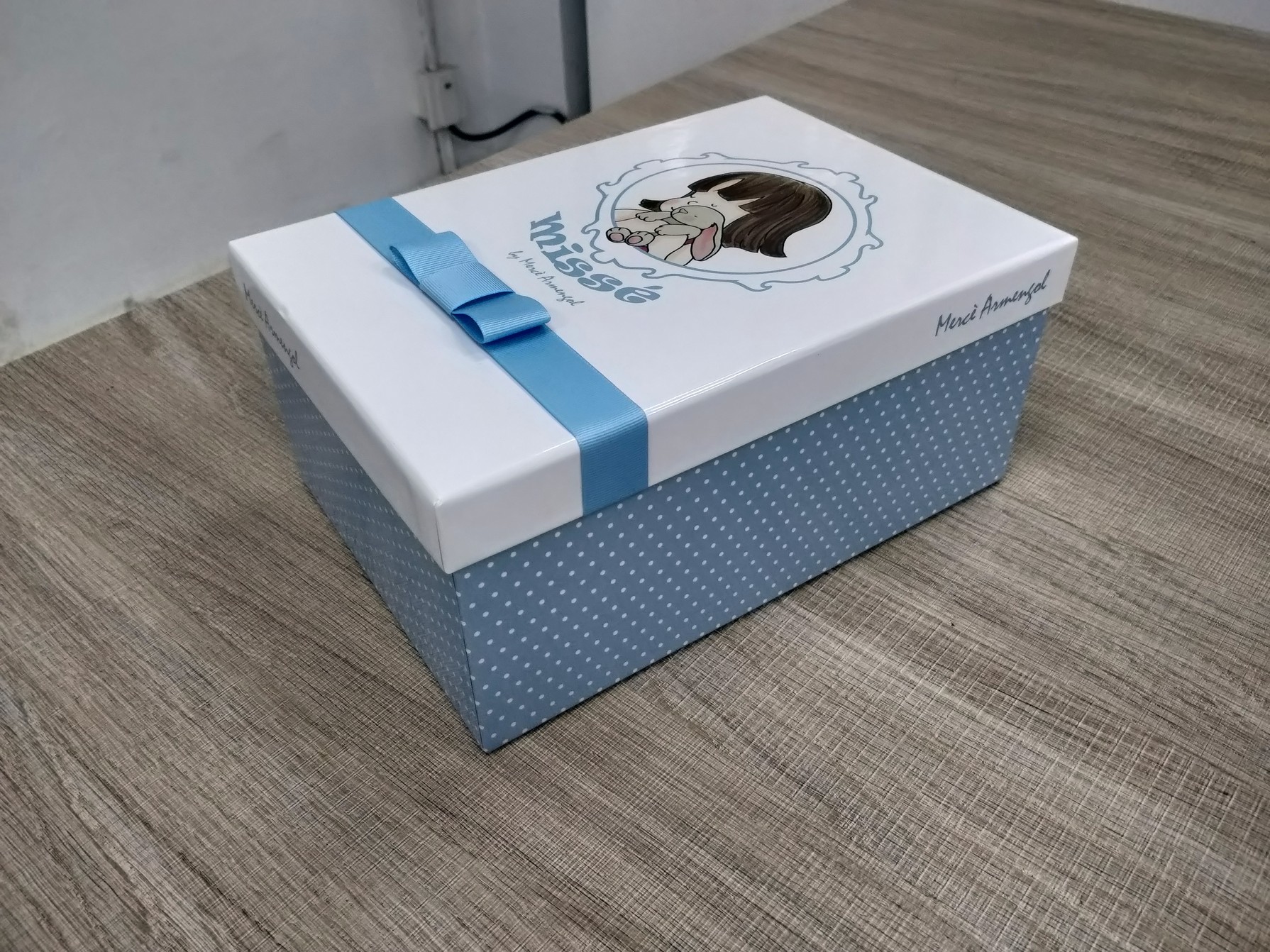

The photographs are especially useful for packaging buyers because they show more than the finished front view. They record the side profile, back panel, wrapped corners, ribbon position and a physical height measurement. Those details reveal the decisions that must be approved before a decorative rigid box moves into mass production.
What This Rigid Doll Gift Box Shows

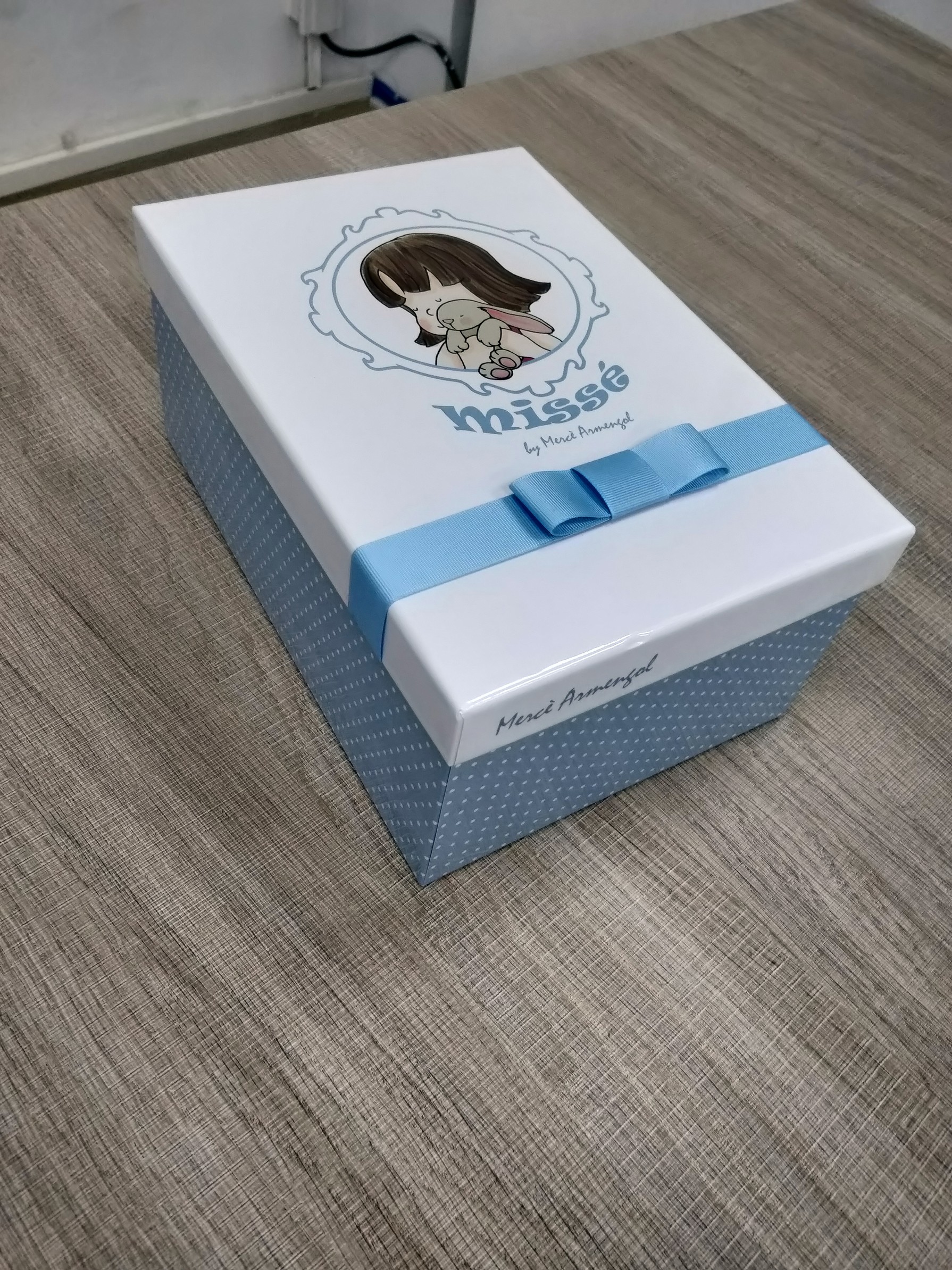

The box is built around a familiar premium structure: thick board forms a separate base and lid, then printed paper is wrapped over the board. The lid is deep enough to overlap much of the base, helping the package stay aligned during handling. A narrow blue ribbon runs across the lid and is finished with a flat layered bow. It adds a gift cue without creating an oversized decoration that would complicate master-carton packing.
The visual system is carefully coordinated. White gives the illustrated lid a clean field, while the muted blue base and small white dots create contrast. The same blue appears in the ribbon, so the box reads as one designed object rather than several unrelated materials. For a buyer, this coordination needs accurate color references because printed paper and textile ribbon absorb color differently.
Structure and Board Selection
A rigid lid-and-base box is normally made from greyboard wrapped with coated, uncoated or specialty paper. Board thickness should be selected from the finished size, product weight and distribution method. A large doll package needs enough stiffness to resist bowing across broad panels, but increasing board thickness also adds cost, weight and wrapping difficulty.

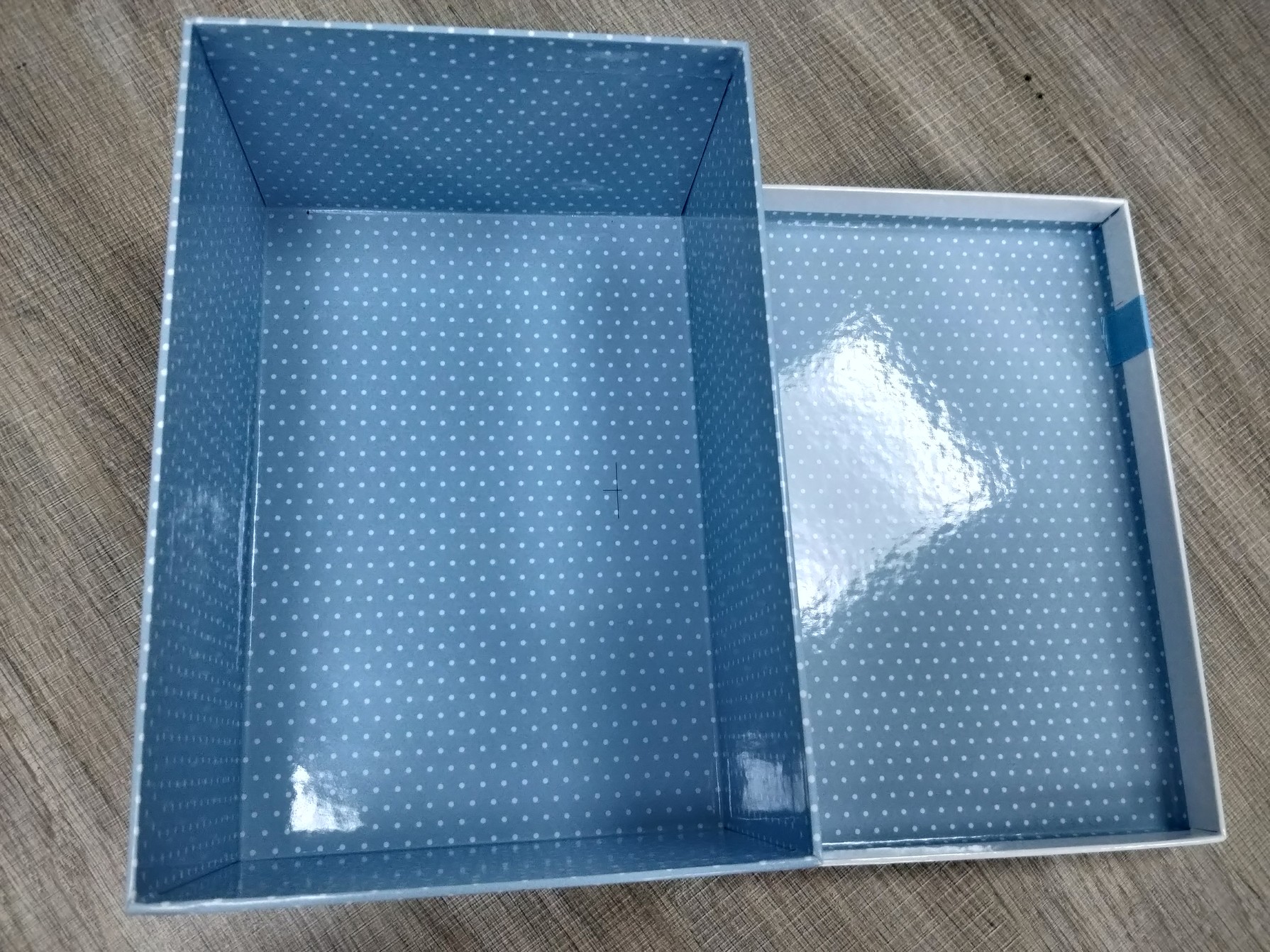

The overlap between lid and base controls both appearance and usability. Too little overlap may feel loose and reveal uneven gaps. Too much overlap can trap air or make the box difficult to open, especially after humidity changes the wrapped paper. A physical sample should be tested after the intended insert and product are loaded.
Buyer Checks Before Approval
- Internal fit: Include the doll’s hair, clothing and accessories in the maximum dimensions.
- Lid tolerance: Confirm smooth opening without wobble or excessive suction.
- Board stiffness: Check large panels for bowing under stacked warehouse loads.
- Wrapped edges: Inspect corners, turn-ins and seams for lifting or exposed board.
- Ribbon fixing: Make sure the bow remains aligned after vibration and repeated handling.
- Insert support: Prevent the product from shifting toward the lid or side walls.
Using Ribbon Without Hiding the Artwork
Ribbon can make a box feel ceremonial, but it must work with the graphic layout. In this case the ribbon crosses a relatively quiet part of the lid and leaves the main illustrated character and wordmark readable. The bow is low-profile, which reduces crushing and helps finished boxes fit into protective bags and master cartons.
During artwork development, the factory should place the ribbon path on the dieline or mockup. This prevents important copy, faces, barcodes or regulatory marks from being covered. Ribbon width and bow dimensions should be specified rather than approved only from a photograph. The fixing method also matters: adhesive must hold on the selected lamination without staining the ribbon or creating a visible bump.
Color matching should be evaluated under consistent light. A printed blue made from process inks may not perfectly match a stock ribbon. Buyers can choose a close commercial ribbon for cost efficiency or request a custom-dyed textile for tighter brand control at suitable quantities.
Artwork, Information and Finishing
The front-facing lid carries the emotional part of the design: character artwork, the product name and a soft decorative frame. The back panel handles practical information, including multilingual copy, company details, social icons, a barcode and compliance marks. Separating these roles keeps the front attractive while preserving the information required for retail.
The photographs show a glossy surface, likely created with laminated printed wrap. Gloss lamination strengthens color and improves wipe resistance, but it can reveal fingerprints and reflections. Matte lamination offers a softer look, while spot UV, foil or embossing can highlight selected graphics. Each finish should be tested around folds and wrapped edges.
Dimension Checks Matter

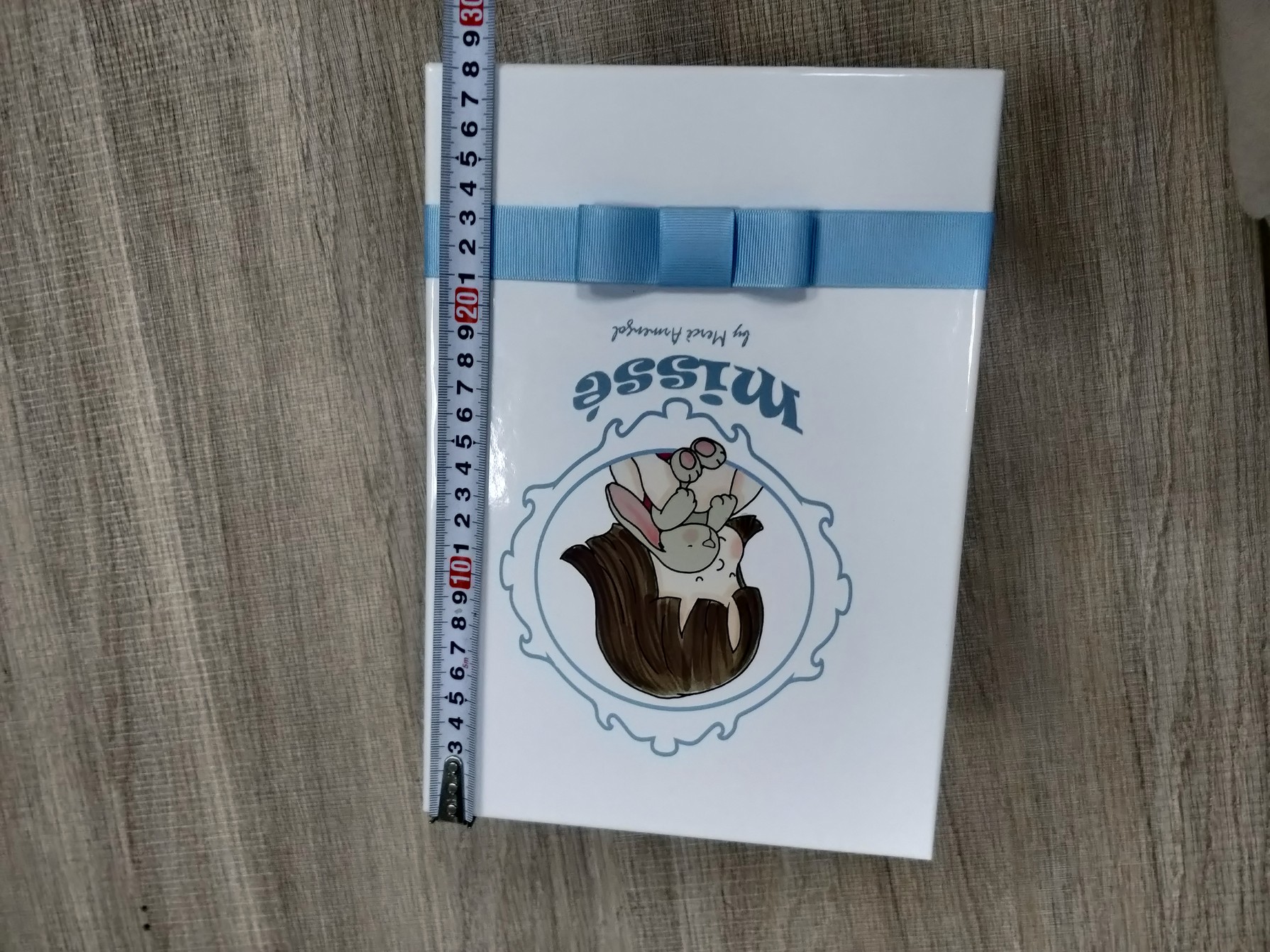

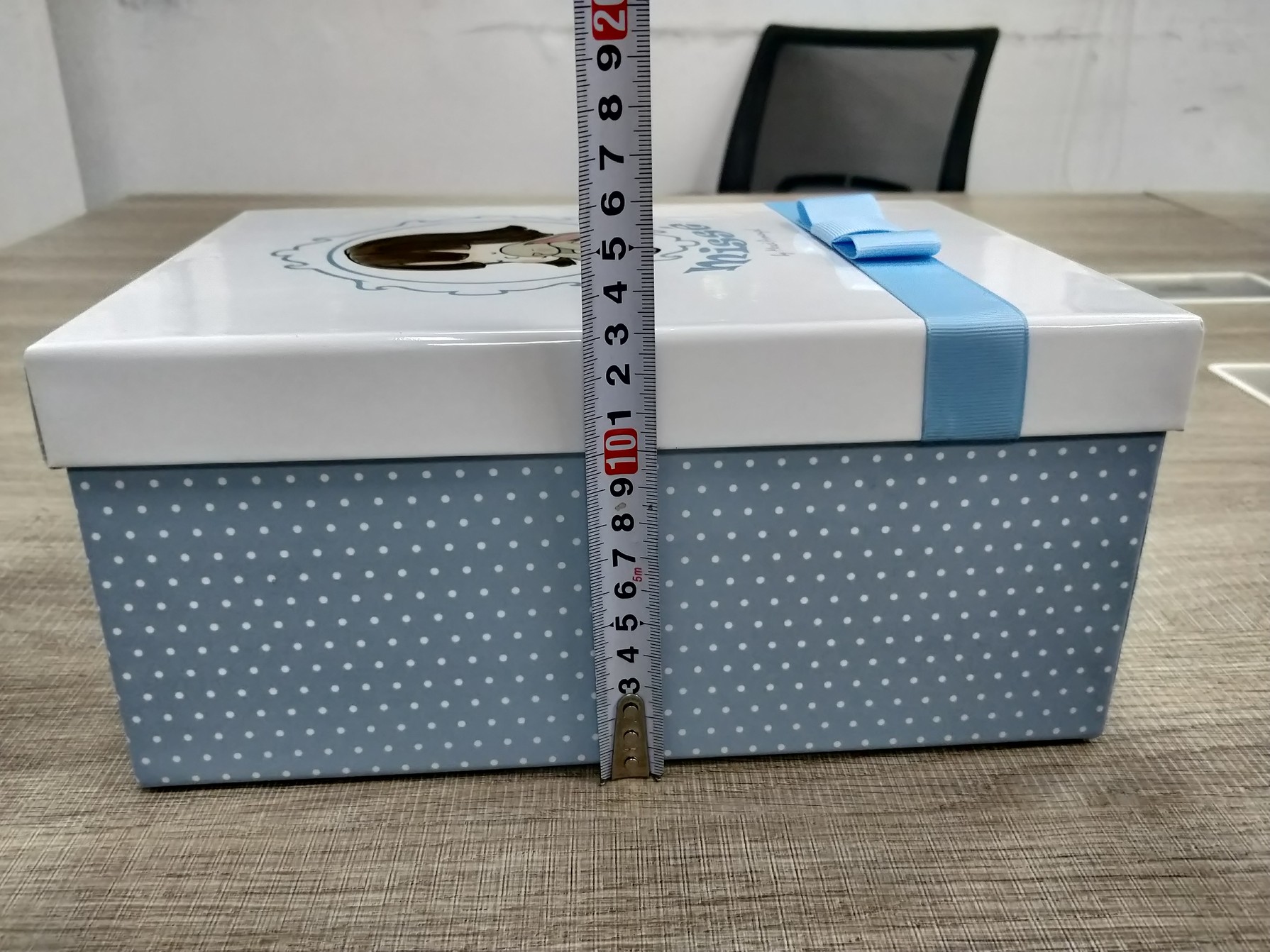

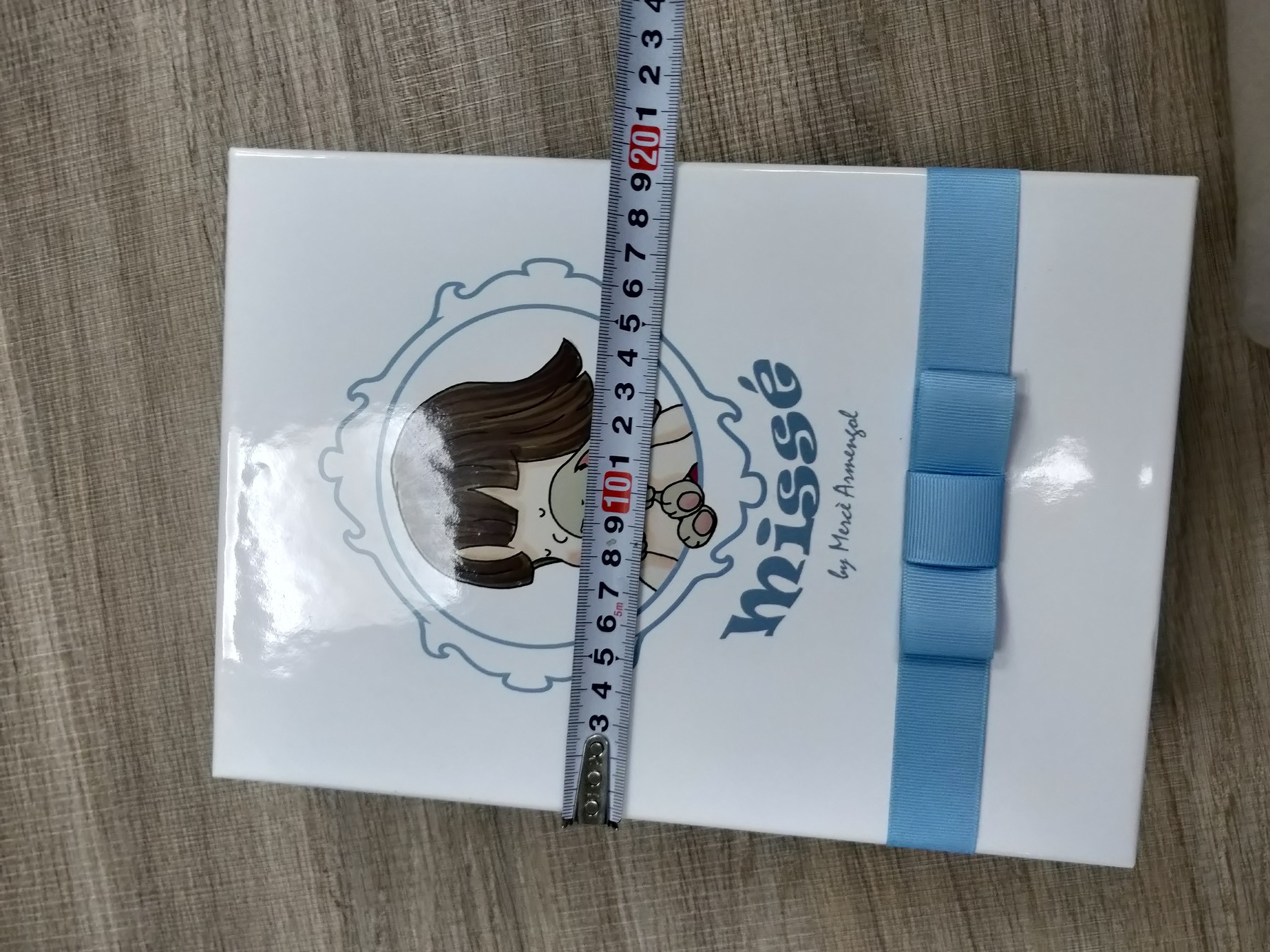

One archive photograph places a measuring tape against the finished box. This is a simple but important approval step. Finished dimensions determine the insert, shipping carton, pallet plan, freight volume and retail storage requirements. Measurements should be taken on a fully wrapped box because board, paper and adhesive all affect the final size.
Record internal usable dimensions separately from external dimensions. A nominal box size may not describe the clearance available after an insert is fitted. For dolls and irregular keepsakes, a product outline or physical sample is more reliable than three basic measurements alone.
Choosing and Testing the Insert
The archive views focus on the outer box, but the insert determines whether the product arrives in the intended position. A paperboard platform can provide a mostly fiber-based solution and offers printable surfaces. Molded pulp adds cushioning and good environmental messaging. PET trays provide precise visibility and retention, while foam can protect delicate products but may conflict with sustainability goals.
The insert should be tested with the complete product set. Accessories need dedicated pockets or ties so they do not scratch the doll or move beneath the lid. For a presentation box, the first view after opening is critical; the product should remain centered after parcel vibration, drops and warehouse stacking.
Ask the factory to document attachment points, removal steps and the amount of force needed to release the product. A package that looks secure in a photo can frustrate customers if too many ties or concealed fasteners are used.
Sampling, Packing and Quality Control
A white sample is useful for confirming dimensions and lid fit, followed by a printed sample for color, finish and ribbon approval. The buyer and factory should mark the approved sample with a version date. Production inspection can then compare board thickness, finished size, lid gap, print position, ribbon alignment, barcode readability and wrapped-corner quality against the same reference.
Master-carton planning should start before mass production. Decorative bows need protection from compression, and glossy lids should be separated to reduce scuffing. The team should agree whether each box receives tissue, a protective bag or a paper sleeve. Carton quantity and orientation affect freight cost, so external box dimensions should be included in the delivered-cost calculation.
For related formats, explore Holidaypacfactory’s custom rigid boxes, cardboard packaging boxes, custom packaging solutions, custom paper bags and paper tube packaging. Structure should be selected from product protection, presentation, order quantity, packing labor and freight efficiency rather than appearance alone.
Retail Copy and Compliance Artwork
Packaging for dolls and children’s products often carries more controlled information than a general gift box. Before artwork approval, the buyer should identify the destination market, age grading, importer details, warnings, language requirements, traceability codes and applicable conformity marks. The packaging supplier can reserve and print these zones, but the brand owner or importer should provide approved legal copy and confirm which claims are permitted.
Keep variable items such as barcodes, batch references and market-specific labels away from wrapped corners, ribbon paths and highly reflective artwork. A printed proof should be checked at actual size, then the finished sample should be scanned with the intended retail equipment. This review reduces the risk of attractive artwork making essential information difficult to read.
Frequently Asked Questions
What structure is used for this doll gift box?
This case uses a rigid two-piece lid-and-base structure made from thick greyboard wrapped with printed paper. The deep lid overlaps the base for a secure, premium presentation.
Can the ribbon bow and printed artwork be customized?
Yes. Ribbon width, color, texture and bow style can be coordinated with custom printed paper, foil, spot UV, embossing or other finishes.
What measurements are needed before sampling?
Provide the product's maximum length, width and height, including hair, clothing and accessories, plus the required insert clearance and preferred lid overlap.
Which inserts work inside a rigid doll box?
Common options include paperboard platforms, molded pulp, PET trays and foam. The right insert depends on display goals, product weight, sustainability requirements and shipping risk.
What information is needed for a quotation?
Send product dimensions and weight, order quantity, destination, artwork, preferred material and finish, insert requirements, packing method and any compliance or testing needs.
