Raise the pizza for a relaxed shared meal. This concept combines a square pizza carton with a separate crossed-cardboard pedestal. The support is intended to pack flat and be assembled at the destination, creating a compact serving presentation for a level picnic or patio surface.

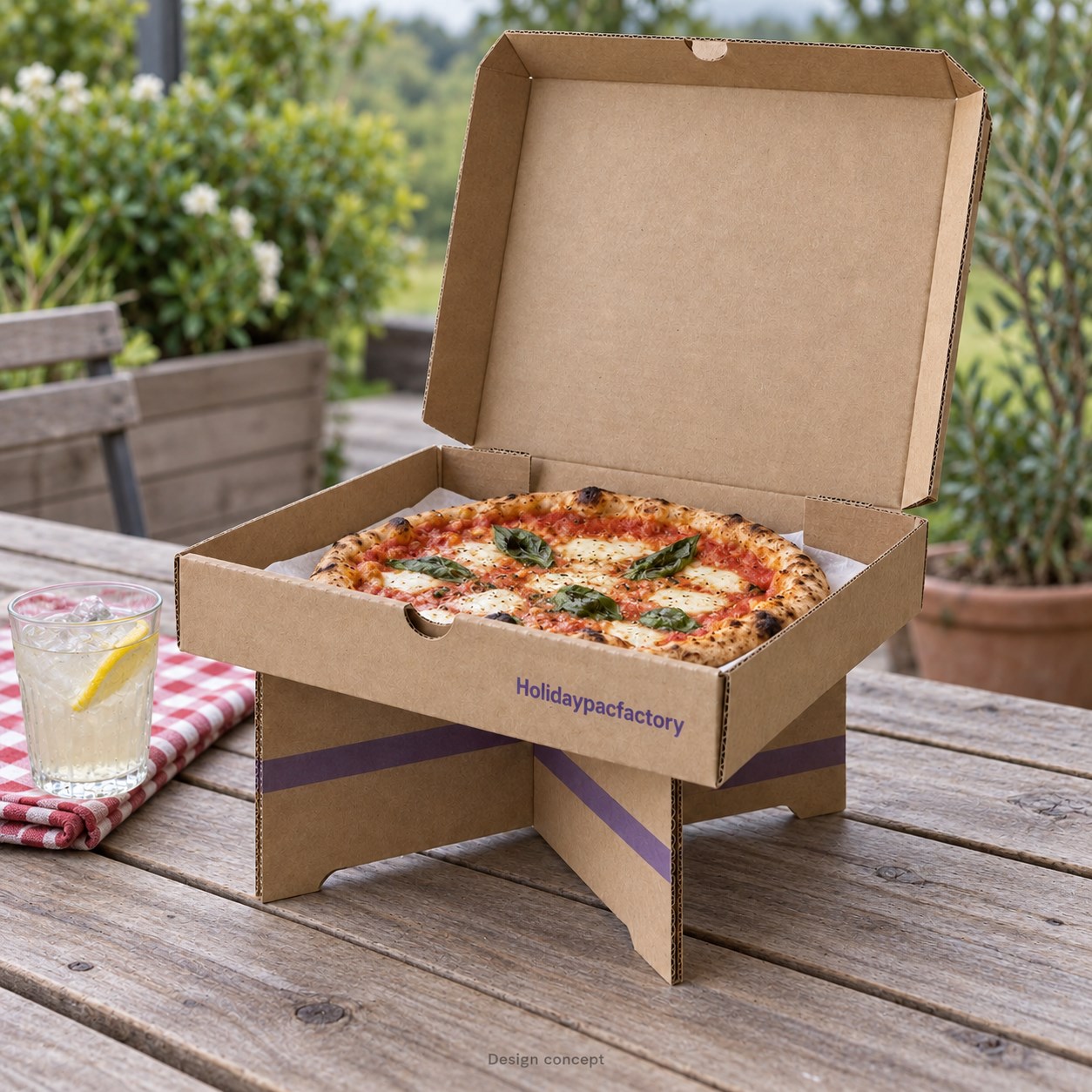

The outdoor scene shows the proposed carton resting on a short cardboard pedestal. It offers a different serving position for a casual picnic, patio gathering, or restaurant event. The pizza stays inside its tray while the support becomes part of the presentation. The scene illustrates an idea, not a verified load test.
Transport and serving are separate stages: the meal would travel in the closed carton, with the support deployed at the destination. A level surface and a stable arrangement are essential development considerations. For accompanying food, explore our takeaway meal boxes and assess the whole set together. The support should never be assumed suitable for carrying an assembled meal without testing.

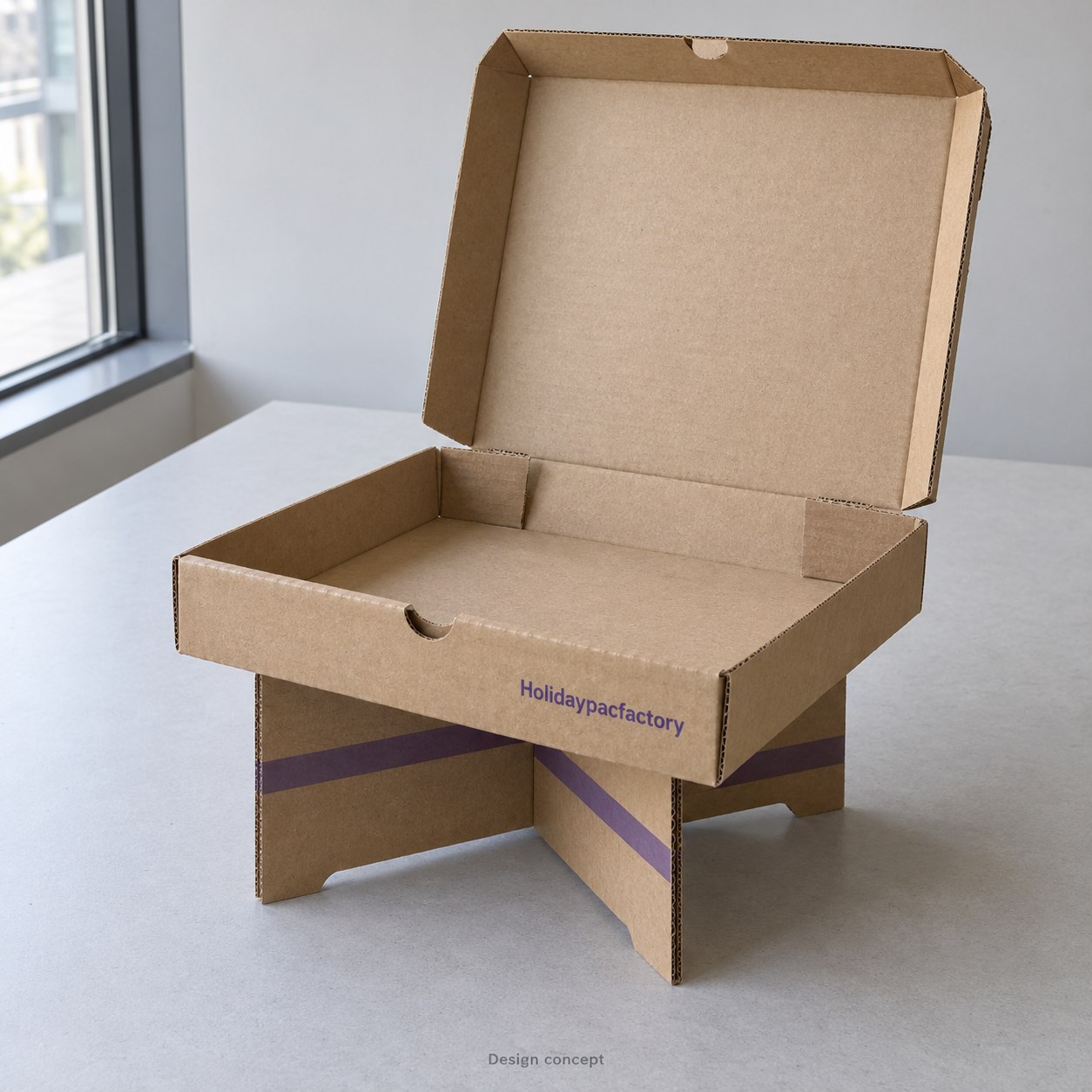

The empty assembly makes the main components easy to understand. A shallow hinged carton sits above two intersecting corrugated panels, leaving the food compartment clear. The kraft and purple treatment ties the parts together visually without turning the support into a large decorative object. Material grades have not yet been selected.
A physical sample needs to establish how the carton stays in position, how the feet contact the surface, and how the support responds when a slice is removed. Review dry conditions and realistic moisture exposure. The apparent stiffness in the image is not a strength rating. Final use instructions should follow the tested sample and describe placement, assembly, and appropriate limits.

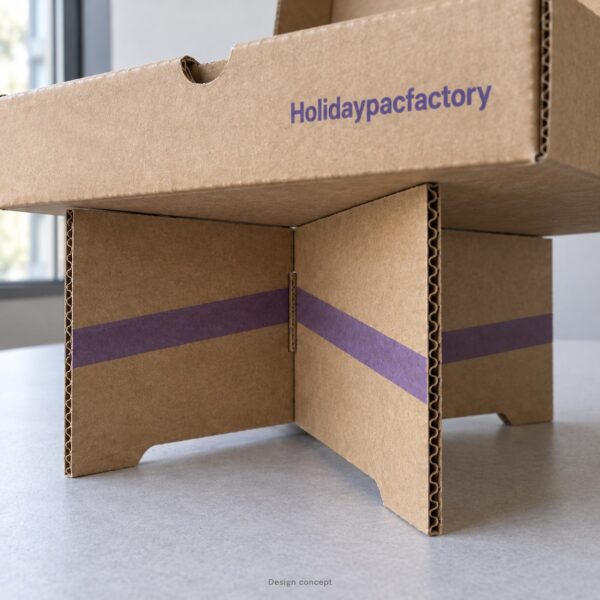

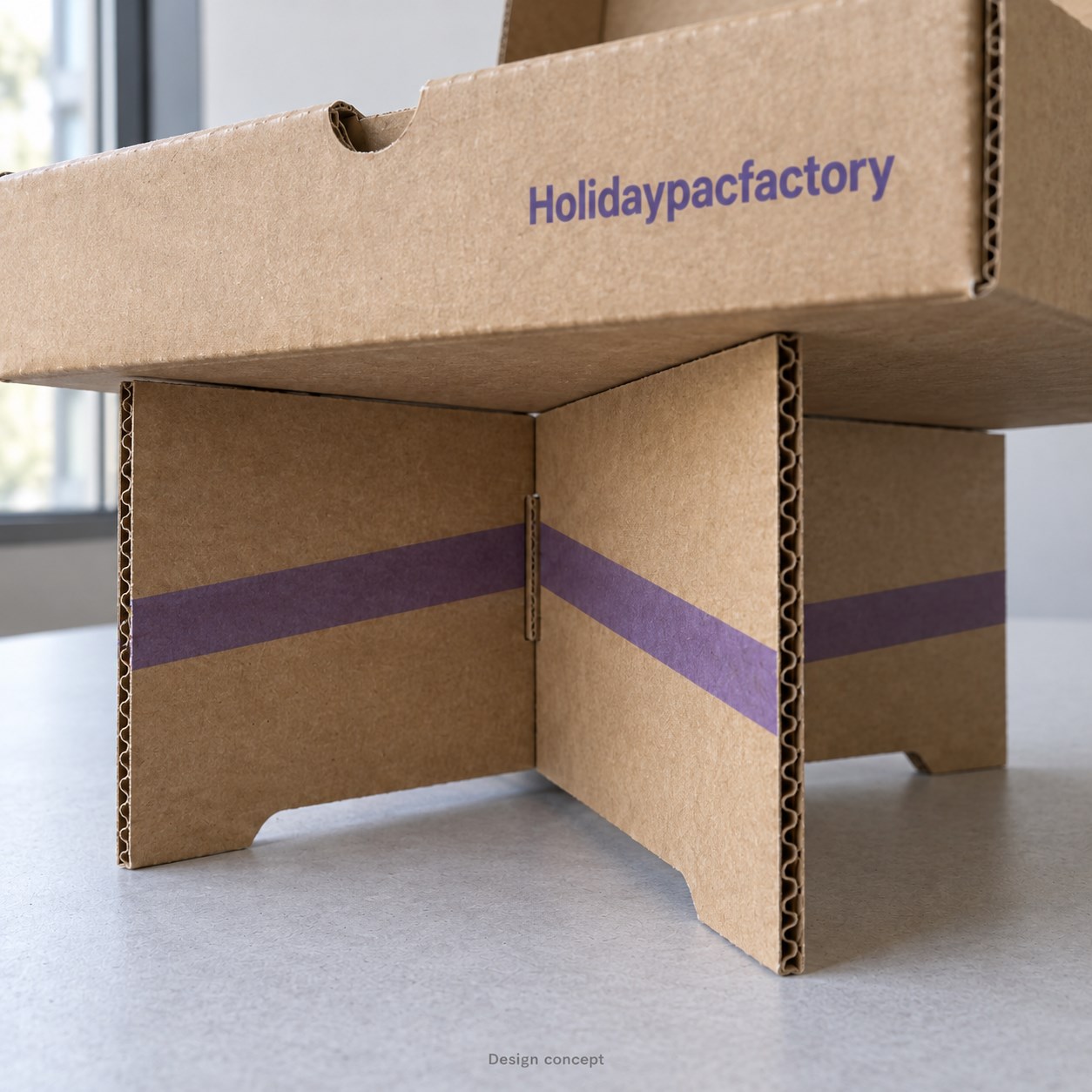

The detail image focuses on the intersection between the two support panels and the underside of the carton. A complementary slot arrangement is proposed to locate the panels, while their broad lower edges create contact with the table. This connection is central to the concept and needs careful structural development.
Board caliper, slot width, panel orientation, and resistance to twisting should be reviewed together. Also confirm how the carton is prevented from sliding across the top. Any retaining feature must remain compatible with the food tray and easy assembly. The illustration is a discussion reference; it does not prove joint strength, stability under uneven loading, or performance after repeated use and exposure to moisture.

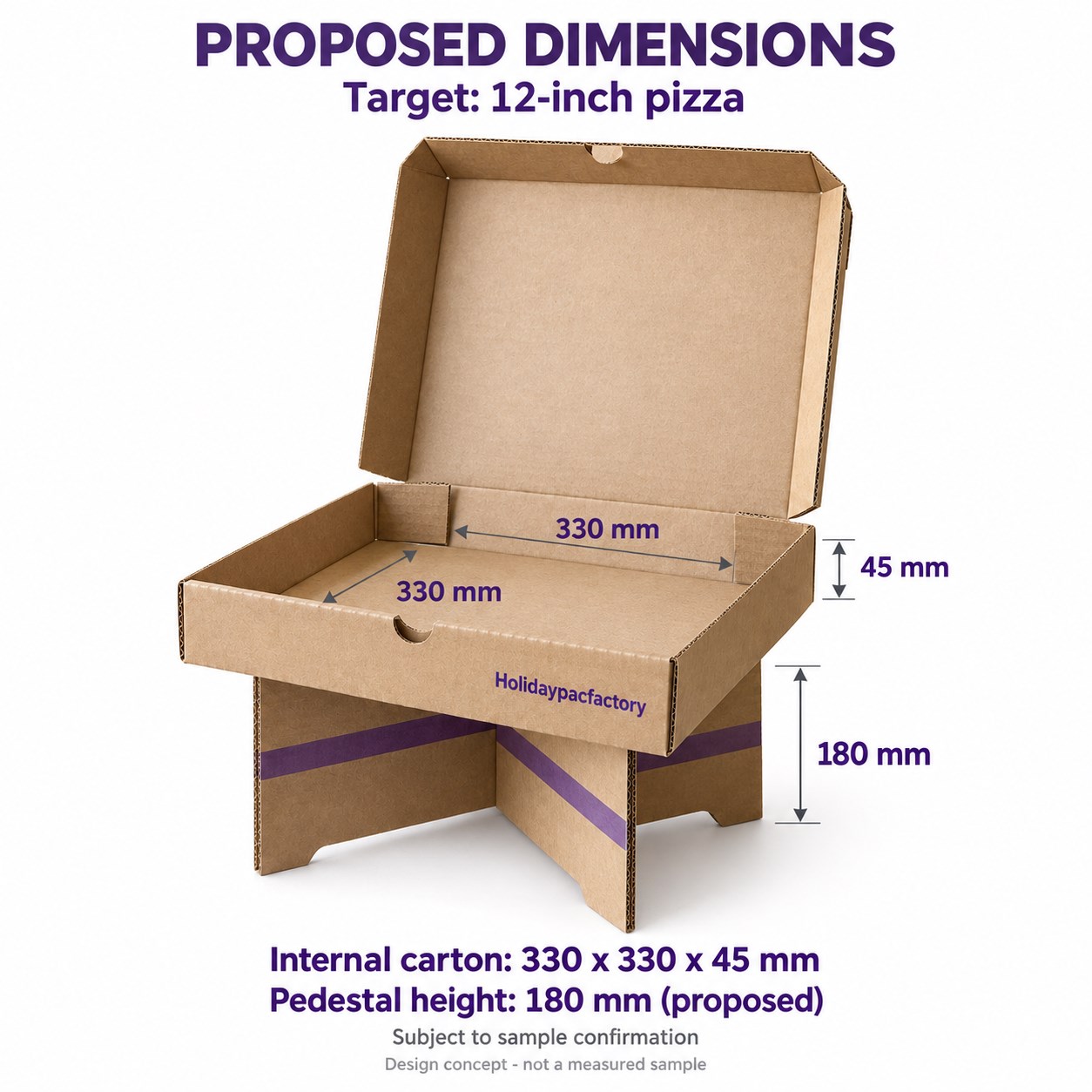

The study proposes a 330 × 330 × 45 mm internal pizza tray and a separate support height of 180 mm. The tray is intended as a starting point for a 12-inch pizza. These dimensions require sample confirmation and do not specify the final outside footprint, panel thickness, or slot allowance.
Height should be considered alongside stability. Raising the carton changes how it responds when someone pulls a slice or presses on an edge. Send the actual food dimensions, expected filled weight, intended surface, and delivery-bag size with your enquiry. A structural review can compare the proposed arrangement with lower or wider alternatives before an appropriate geometry is selected for physical testing.

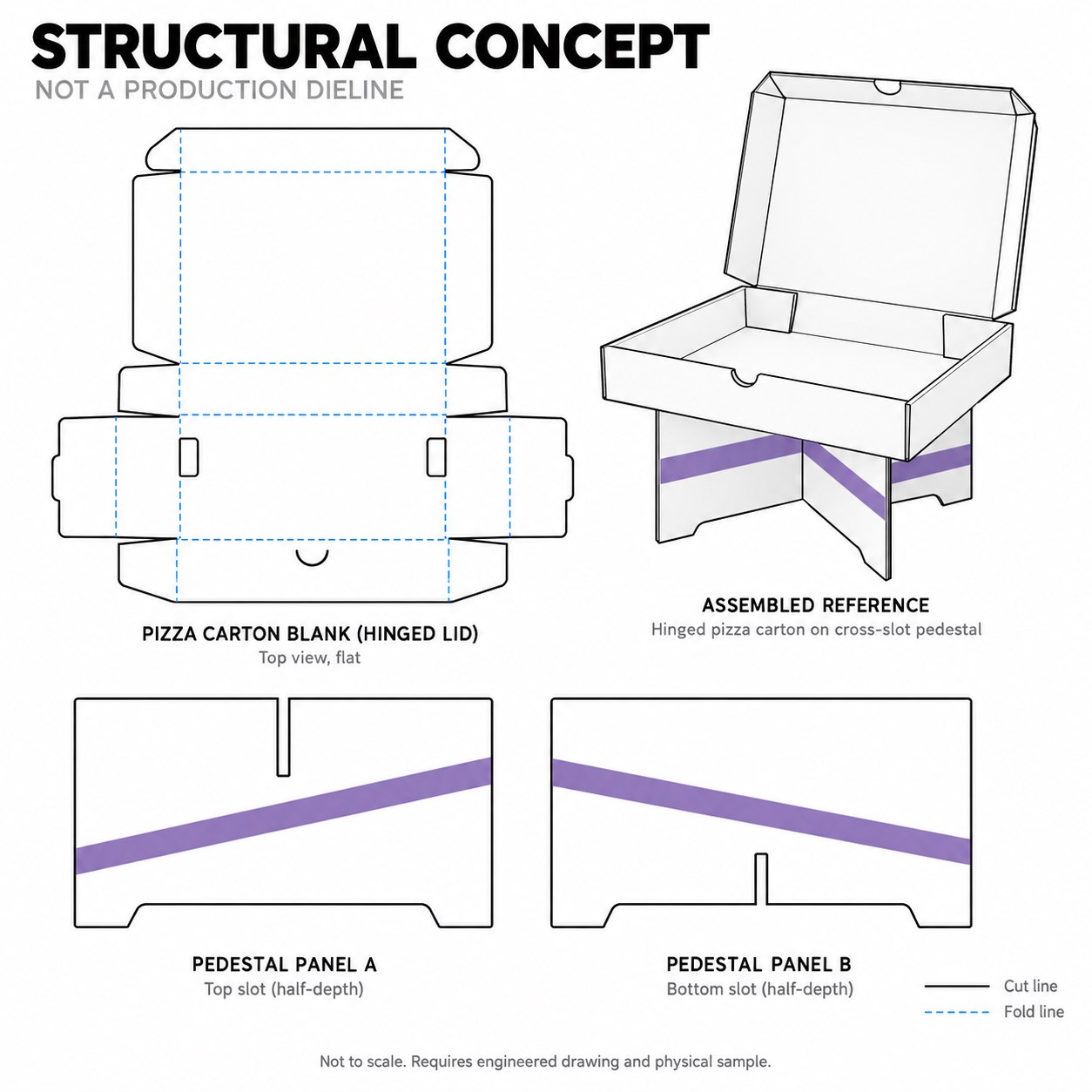

The structural illustration separates the hinged carton from two proposed pedestal panels. One panel has a slot approaching from above, the other from below, communicating the intended crossing arrangement. The sheet is not to scale and is not a production dieline. Final slot dimensions must follow the selected board and engineered fit.
Evaluate assembly by someone unfamiliar with the design, then test the carton and support as a complete set. Check missing parts, incorrect orientation, packing space, and the clarity of short instructions. Tooling and printed artwork should follow an approved structural drawing and physical sample. If testing changes the footprint or connection, update the dimensions and product presentation before discussing a production order.
| Target fit | 12-inch pizza; actual food fit to be checked |
|---|---|
| Proposed internal tray | 330 × 330 × 45 mm; subject to sample confirmation |
| Additional component | Separate crossed support; proposed height 180 mm |
| Materials and printing | Kraft and purple visual direction; final specification to be agreed |
Holidaypac’s “From nature. Back to nature.” philosophy connects practical design with thoughtful material choices. Here, the aim is a useful package with a memorable opening or serving moment. It does not establish an environmental claim: recyclability, coatings, and food-contact suitability must be assessed for the exact materials and destination market.
For an enquiry, send your pizza measurements, quantity per artwork, brand files, intended occasion, destination, and sample deadline. Identify which interactive feature matters most and how staff will pack the order. Ask for sampling, tooling, assembly, and freight assumptions to be listed separately. A clear brief makes design options and quotations easier to compare.
Are these finished products?
These are AI-generated concept images, not photographs of manufactured samples. The next step is structural development and a physical sample. Final imagery should match the approved construction.
Can we change the size and printing?
Custom sizes and original artwork can be discussed. The final layout, materials, print process, and food clearance depend on the agreed specification and sample review.
What are the price and lead time?
MOQ, price, sample charges, and lead time are not fixed for this concept. They should be quoted after the structure, materials, quantity, artwork, and delivery requirements are defined.
